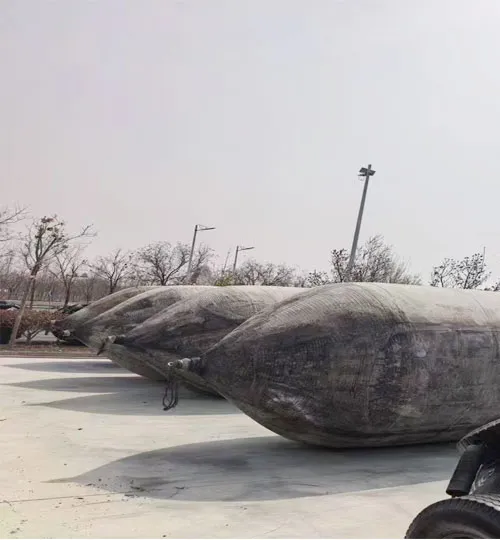

1. What Is a High-Pressure Water-Blocking Airbag?

A high-pressure water-blocking airbag is an Inflatable Pipeline Plug used to temporarily close or isolate a pipe. It is inserted while deflated and then inflated so the rubber surface expands against the internal pipe wall.

The contact between the expanded rubber body and the pipe wall creates the blocking and sealing effect. Once the required inspection, repair or testing operation has finished and the system has been made safe for removal, the airbag can be depressurized and taken out.

In international markets, buyers may use several related names when searching for this product, including inflatable pipe plug, sewer blocking plug, pipeline stopper, high-pressure sewer plug, inflatable test plug, rubber pipe blocking airbag and water-blocking bladder for pipelines.

The biggest advantage is temporary isolation without installing a permanent valve or constructing a rigid barrier inside the pipeline.

For example, a municipal contractor may need to isolate one part of a sewer network to repair a damaged section. A drainage contractor may need to close the downstream end of a newly installed pipe during a water-tightness test. A maintenance team may need temporary dry working conditions inside a culvert or pipe section.

In these cases, a correctly selected inflatable water-blocking airbag for pipelines can provide a practical temporary seal.

It is important, however, to distinguish temporary blocking from permanent pipeline equipment. The airbag is normally used as temporary construction, testing or maintenance equipment. It should not automatically be treated as a permanent valve or unattended long-term isolation device unless a specific engineered application has been approved for that purpose.

Inflatable Pipe Plug vs. Other Temporary Isolation Methods

Source: High-pressure water-blocking airbag characteristics are based on Hengshui Qingchuan Trading Co., Ltd. product information. Mechanical plug and temporary barrier descriptions reflect common pipeline maintenance methods. Final isolation method should be selected by the responsible project team according to pipe condition, pressure, access and safety requirements.

We do not recommend choosing between these methods only by price. For a pressure-blocking job, the key question is whether the isolation system is suitable for the actual pipe and the actual pressure condition.

2. How an Inflatable Pipeline Blocking Airbag Works

The operating principle is simple, but pressure makes the details important.

Step 1: Confirm the Pipe Diameter

The first information we need is the internal pipe diameter or the actual dimensions of the opening to be blocked.

A plug that is too small may not create the required contact with the pipe wall. A plug that is not suitable for the available diameter range should not be forced into service simply by adding more inflation pressure.

For customized projects, we recommend providing drawings or measured pipe information rather than relying only on the nominal pipe name.

Step 2: Confirm Pipe Material and Internal Condition

The internal surface affects sealing.

Concrete pipe, steel pipe, plastic pipe and other pipeline materials can have different surface conditions. Old sewers may contain sediment, damaged joints, sharp debris or uneven surfaces.

The section where the airbag will contact the wall should be inspected and cleaned as required before installation.

A strong rubber airbag cannot compensate for every broken, badly deformed or sharp internal surface.

Step 3: Confirm the Required Backpressure

This is one of the most important purchasing parameters.

There are two pressures that buyers should not confuse:

• Inflation pressure — the pressure inside the airbag that expands it against the pipe wall.

• Pipeline backpressure — the water, wastewater or test pressure pushing against the installed plug.

A product may have a specified inflation pressure and a different allowable backpressure. These values must come from the actual product configuration and project requirement.

This is why simply asking for a “high-pressure airbag” is not enough for accurate selection.

Step 4: Position the Deflated Airbag

The airbag is inserted into the selected blocking position while deflated.

The site team should keep the plug away from sharp metal, broken concrete edges, exposed reinforcement or other objects that could damage the composite rubber body.

The pipe should also provide enough suitable contact length for the selected plug and installation method.

Step 5: Inflate According to the Specified Procedure

The airbag is connected to suitable inflation equipment and expanded until it reaches the required operating condition for that model.

Pressure should be monitored with appropriate equipment.

We do not recommend inflating “by feel.” A plug can look firm without being at the correct pressure, and excessive inflation is not a safe way to compensate for poor sizing.

Step 6: Establish the Temporary Seal

As the airbag expands, the outer rubber surface presses against the pipe wall and creates friction and sealing contact.

The plug must remain stable against the pressure acting on it.

The system should therefore be treated as pressure-bearing temporary equipment rather than simply as a soft rubber object.

Step 7: Perform Repair, Inspection or Testing

Once the isolation has been confirmed according to the project procedure, the maintenance or test operation can proceed.

Typical jobs include pipeline repair, temporary flow isolation and water-tightness testing.

ASTM F1417-25, for example, covers low-pressure air acceptance testing of installed non-pressure plastic sewer lines. The ASTM scope states that connections and service laterals must be plugged and adequately braced to withstand the test pressure before the test is conducted.

That requirement illustrates an important principle: a pipeline test plug must be selected and restrained for the pressure involved in the test. The plug should not be treated as an unrestrained stopper.

Step 8: Remove Pressure Before Removing the Airbag

The plug should not simply be deflated while significant water pressure remains behind it.

The responsible site team must first bring the system to the safe condition required by the operating procedure.

Only after pressure and flow conditions are controlled should the airbag be depressurized and removed.

3. Pressure Ratings: What Buyers Need to Understand Before Ordering

Because this product is called a high-pressure water-blocking airbag, pressure is naturally one of the first questions buyers ask.

But stating only one number can be misleading.

Inflation Pressure and Backpressure Are Different

The air pressure inside the plug keeps the rubber body expanded against the pipe wall.

The water or wastewater behind the plug creates a separate force trying to move the plug along the pipeline.

The larger the pipe cross-section and the greater the pressure behind the plug, the larger the total axial force can become.

This is why high-pressure pipeline plugging requires both correct product selection and a safe work procedure.

Pressure Units Can Cause Purchasing Errors

International projects often use different units. A Chinese drawing may use MPa, another customer may use kPa, while an American project may specify psi.

The following conversion table is based on official NIST data.

Source: U.S. National Institute of Standards and Technology (NIST), Pressure and Gas Flow Unit Conversions. NIST gives 1 psi as 6894.757 Pa, equivalent to 6.894757 kPa. The calculated rows above are unit conversions only and must not be interpreted as ratings for our water-blocking airbag.

We recommend including both the value and unit clearly on purchasing documents. Writing only “pressure 0.1” without stating whether the unit is MPa, bar or another unit creates unnecessary risk.

Pipe Diameter Changes the Total Force

Pressure is force divided by area. This means the same water pressure can create a much greater total pushing force on a large-diameter plug than on a small one.

For this reason, buyers should never assume that a pressure rating proven on one diameter automatically applies to every larger diameter.

Pipe Condition Also Matters

A plug relies on controlled contact with the internal wall.

Mud, grease, loose deposits, damaged concrete or highly irregular surfaces can affect sealing and resistance to movement.

The pipe should therefore be inspected as part of the isolation plan.

Do Not Exceed the Contracted Pressure Specification

We inspect products according to the pressure-performance requirement confirmed in the order.

If a buyer needs a particular backpressure or inflation specification, it should be provided before production and written into the purchasing documents.

We do not recommend buying a lower-rated product and then trying to achieve a higher field performance by adding more air.

4. Where High-Pressure Water-Blocking Airbags Are Used

Municipal Sewer Maintenance

Municipal sewers are one of the main applications for high-pressure Sewer blocking airbags.

During maintenance, the contractor may need to isolate a section of pipe so workers can repair a joint, inspect damage or perform other operations.

The airbag can be installed upstream or downstream according to the approved maintenance plan.

Sewer work also brings serious safety issues. OSHA's permit-required confined-space standard identifies sewers as systems where isolation may be difficult and requires testing or monitoring of conditions when entry operations are performed under the applicable standard.

OSHA also identifies hazards such as engulfment, toxic gases, flammable atmospheres and oxygen deficiency in its sewer-entry example.

Wastewater Pipeline Networks

Industrial and municipal wastewater pipelines may need temporary blocking during maintenance, branch connection or inspection.

A rubber inflatable wastewater pipe plug provides a removable isolation method when the pipe diameter and pressure conditions match the product specification.

The wastewater composition should also be considered. If the liquid contains aggressive chemicals, the buyer should provide information about the medium so material compatibility can be reviewed rather than assuming every rubber configuration suits every chemical environment.

Water-Supply and Drainage Pipelines

Temporary blocking may also be required during water-supply and drainage system construction or repair.

Where a pressurized water-supply system is involved, the actual operating pressure must be carefully confirmed. A plug designed for low-pressure sewer maintenance should not automatically be used in a higher-pressure distribution line.

Water-Tightness Testing

Newly installed drainage or sewer lines may require acceptance testing according to project specifications.

Inflatable plugs can isolate the test section.

ASTM F1417-25 covers installation acceptance of non-pressure plastic sewer lines using low-pressure air. ASTM states that all connections and service laterals must be plugged and adequately braced before testing. It also explains that the air test measures leakage from an isolated section and is not a quantitative measure of total service-condition water leakage.

Project teams should use the test method required by the contract, local authority or applicable standard rather than assuming that one testing procedure is suitable everywhere.

Underground Culverts

Underground culverts may need temporary water blocking during inspection, repair or construction work.

A customized airbag can provide temporary isolation where the geometry and pressure condition are suitable.

For non-circular culverts or unusual openings, the buyer should provide drawings because a standard circular pipe plug may not be appropriate.

Emergency Temporary Flow Isolation

Unexpected pipeline damage may require temporary isolation before permanent repair can begin.

A portable inflatable emergency pipe plug can be useful as part of a contractor's maintenance equipment inventory.

The deflated product takes up relatively little storage space compared with rigid barriers.

Application and Safety Reference

Sources: OSHA 29 CFR 1910.146 and its sewer-entry example provide guidance on confined-space hazards and monitoring for applicable general-industry sewer entry. ASTM F1417-25 provides requirements for low-pressure air testing of installed non-pressure plastic sewer lines, including plugging and bracing before testing.

5. Why Composite Rubber, Foldable Construction and Custom Sizes Matter

Thickened Composite Rubber Body

Our high-pressure water-blocking airbag uses thickened composite rubber material.

The body has to remain flexible enough to fold while also developing stable contact with the pipe wall after inflation.

The material is designed for pressure-bearing temporary blocking applications within the specified operating limits of the actual product.

Stable Sealing

A pipe plug only works if it can maintain contact around the internal circumference of the pipe.

Good sealing depends on the airbag, inflation condition and pipe surface working together.

A damaged or heavily contaminated pipe surface can reduce sealing performance even if the airbag itself is in good condition.

Pressure Resistance

Pressure performance is one of the main product characteristics.

We inspect according to the pressure requirement agreed in the contract rather than using one generic number for every diameter.

When requesting a quotation, buyers should tell us the expected pipeline backpressure and any required airbag inflation specification.

Lightweight When Deflated

The flexible structure is easier to move and store than many large rigid pipe-blocking systems.

This is particularly useful for municipal maintenance teams that need to carry plugs to different manholes and underground work locations.

Foldable for Storage

After use and complete depressurization, the airbag can be folded.

This reduces warehouse and vehicle space requirements.

For contractors managing several sizes, compact storage also makes it easier to keep a selection of plugs available for different projects.

Custom Diameter and Length

Pipeline projects vary widely in size.

We support customized dimensions according to project requirements.

For the best selection, customers should provide actual pipe internal diameter, required blocking pressure, application and available insertion length.

Different Projects Need Different Pressure Specifications

A small gravity sewer test, a large-diameter culvert and a pressurized water line are not the same operating condition.

They should not automatically use the same plug simply because all three involve “blocking water.”

This is one reason our quotation process starts with working conditions rather than only product size.

6. Manufacturing, Inspection and Safe Installation Points

We Confirm the Project Parameters

Before manufacturing, we normally confirm:

• Pipe internal diameter

• Required airbag size

• Pipeline material

• Liquid or wastewater type

• Required backpressure

• Required inflation-pressure specification

• Required quantity

• Application

• Project delivery date

For non-circular pipelines or culverts, drawings are recommended.

Composite Rubber Preparation

The thickened composite rubber material is prepared according to the required product structure.

The material must combine flexibility, sealing capability and pressure-bearing performance.

Airbag Body Formation

The body is manufactured according to the confirmed dimensions.

For a customized plug, dimensions matter because the inflation range must match the actual pipe condition.

Inflation Interface and Sealing Areas

The inflation system and sealing areas are prepared as part of the complete product.

The airbag needs to maintain the required internal pressure during operation.

Contract-Based Inspection

Before shipment, we inspect the product according to the contract specifications and pressure-performance requirements.

This is especially important for a pressure-blocking product because the purchasing documents should clearly define what performance is expected.

Regular Production Cycle

For normal orders, production generally takes around 7–12 days.

Large-volume orders require additional time.

More specialized sizes or pressure requirements may also affect the production schedule.

Safety Point: Treat the Plug as Stored-Energy Equipment

An inflated pipe plug under backpressure can store significant energy.

Workers should not stand directly in the potential path of an installed plug under pressure. The site-specific operating instructions, restraint method and exclusion area should be established by the responsible contractor.

Safety Point: Sewer Entry May Be Confined-Space Work

OSHA 29 CFR 1910.146 defines permit-required confined spaces for applicable general-industry work and requires employers to evaluate such spaces. OSHA's sewer-entry example identifies engulfment, toxic gas, flammable gas and oxygen-deficiency hazards.

OSHA also states that when a sewer is part of a continuous system and full isolation is infeasible, pre-entry testing should be performed to the extent feasible and conditions in the work area should be continuously monitored where the standard applies.

Product selection does not replace these safety controls.

Installation Checklist

• Confirm the plug model and pressure requirement before use.

• Inspect the rubber body for visible damage.

• Inspect the pipe contact surface.

• Remove sharp debris where possible.

• Confirm inflation equipment and pressure measurement.

• Position the plug according to the approved procedure.

• Install required restraint or bracing.

• Inflate gradually to the specified condition.

• Verify isolation before starting downstream work.

• Maintain the required exclusion zone.

• Monitor the system during the operation.

• Control water pressure before deflating the plug.

ASTM F1417-25 provides a useful example of why restraint matters: for low-pressure air testing of non-pressure plastic sewers, the standard states that connections and service laterals are to be plugged and adequately braced to withstand the test pressure.

7. Why Work With Us and High-Pressure Water-Blocking Airbag FAQ

Hengshui Qingchuan Trading Co., Ltd. has worked in engineering building materials for eight years. We have long-term cooperation with companies involved in municipal pipeline maintenance, water conservancy, bridge installation and other infrastructure projects.

That background helps us understand that pipeline blocking is not simply about choosing a rubber product with the right diameter. Pipe condition, pressure, working medium, access and maintenance procedure all affect selection.

We Support Custom Specifications

Different pipeline diameters and operating conditions require different airbag configurations.

We can discuss customized dimensions and pressure requirements according to the actual project.

We Check Contracted Pressure Requirements

Products are inspected according to the specifications and pressure indicators agreed in the contract before shipment.

We Make Transportation Easier

The product can be deflated and folded after use.

Before shipment, it is folded and wrapped with stretch film to reduce occupied space during road transport.

FAQ: What is a high-pressure water-blocking airbag?

It is an inflatable rubber pipeline plug used to temporarily seal a pipe for maintenance, testing or water isolation.

FAQ: What other names are used for this product?

Common search terms include inflatable pipe plug, sewer blocking plug, rubber pipeline stopper, inflatable test plug, water-blocking bladder and high-pressure sewer plug.

FAQ: What pipes can use the airbag?

Typical applications include municipal sewers, wastewater networks, water-supply and drainage pipelines and suitable underground culverts.

Final suitability depends on dimensions, pipe condition and pressure.

FAQ: Can the size be customized?

Yes. We support customized specifications according to project requirements.

FAQ: What information do you need to select the size?

At minimum, we recommend providing the actual internal pipe diameter, required backpressure, application and quantity.

FAQ: What is the maximum pressure?

There is no responsible universal answer for every model.

Pressure performance depends on product size and construction. Provide the required pressure before ordering so the appropriate specification can be confirmed.

FAQ: Is inflation pressure the same as pipeline backpressure?

No.

Inflation pressure is the pressure inside the airbag. Backpressure is the pipeline pressure pushing against the plug. Both are important and should be stated separately.

FAQ: Can I increase the inflation pressure if the plug is slipping?

Do not exceed the specified operating pressure.

Slipping may indicate incorrect sizing, pipe-surface problems, insufficient restraint or excessive backpressure. The cause should be identified rather than simply adding more pressure.

FAQ: Can it be used for closed-water or water-tightness testing?

Yes, suitable pipeline testing is one of the common applications.

The plug and test procedure must match the project standard and test pressure.

FAQ: Can it be used for low-pressure sewer air testing?

Inflatable plugs can be used to isolate suitable test sections, but the full test procedure should follow the applicable specification.

ASTM F1417-25, for example, applies to low-pressure air testing of installed non-pressure plastic sewer lines and requires connections and laterals to be plugged and adequately braced.

FAQ: Can the airbag be used in a live sewer?

Potentially, but live sewer work requires careful evaluation of flow, backpressure, access and worker safety.

Sewer entry may also involve confined-space hazards and should be handled under the applicable safety program.

FAQ: Can it be used in water-supply pipelines?

Suitable water-supply and drainage applications are possible, but pressure must be confirmed.

Do not assume a sewer plug is suitable for a high-pressure drinking-water main without technical confirmation.

FAQ: Is it suitable for sewage containing chemicals?

Chemical compatibility should be checked when wastewater contains significant corrosive or solvent components.

Provide information about the medium before ordering if the liquid is not ordinary water or municipal wastewater.

FAQ: Can it block a damaged or irregular pipe?

It depends on the condition.

Severe deformation, sharp damage, broken pipe surfaces or large irregularities can affect sealing and may damage the airbag.

FAQ: Does the pipe need to be cleaned first?

The sealing area should be checked and cleaned as required.

Heavy sediment, loose debris, grease or sharp objects can affect the contact between the airbag and pipe wall.

FAQ: Does the plug need restraint?

A pressure-blocking plug should be treated as temporary pressure-bearing equipment.

The required bracing or restraint should follow the product instructions and project safety procedure.

FAQ: Can workers stand directly behind the airbag?

Workers should remain outside the potential movement or ejection path of a pressurized plug and follow the project's exclusion-zone requirements.

FAQ: When can the airbag be removed?

Only after the system has been brought to the safe pressure and flow condition required by the project procedure.

Significant backpressure should not simply be released by uncontrolled plug deflation.

FAQ: Can the product be reused?

The airbag can be used repeatedly when correctly operated, inspected and stored.

We do not publish one fixed reuse number because service life depends on pressure cycles, abrasion, pipe conditions, handling and accidental damage.

FAQ: How should I inspect the airbag before reuse?

Check the rubber body, inflation connection and general condition for visible cuts, unusual wear, deformation or other damage.

FAQ: Is the product heavy?

The flexible structure is relatively lightweight when deflated compared with many rigid blocking devices of similar working size.

Actual weight depends on diameter and specification.

FAQ: Can it be folded?

Yes. After complete depressurization, cleaning and preparation, the airbag can be folded for storage and transportation.

FAQ: How is it packed?

The product is deflated, folded and packed with stretch film.

FAQ: How is it transported?

Road transportation is the main delivery method.

FAQ: What is the normal production lead time?

Regular orders normally require approximately 7–12 days.

Large quantities require additional production time.

FAQ: How do you inspect the product before shipment?

We inspect it according to the dimensions and pressure-performance requirements confirmed in the contract.

FAQ: What are the normal payment terms?

A common industry arrangement is an advance deposit, with the remaining balance settled before shipment.

Exact terms follow the final quotation and sales contract.

FAQ: What information should I provide for a quotation?

For a more accurate quotation, please provide:

• Pipe internal diameter

• Pipe material

• Required quantity

• Municipal sewer, wastewater, drainage, water-supply or culvert application

• Required backpressure

• Required inflation-pressure specification if known

• Liquid or wastewater type

• Condition of the internal pipe surface

• Available insertion and blocking length

• Project location

• Required delivery date

• Applicable test or project standard if required

FAQ: What should I compare between suppliers?

Do not compare only diameter and price.

Check whether each supplier is quoting the same diameter range, pressure performance, rubber structure, inflation connections, accessories and inspection requirements.

Also distinguish between inflation pressure and allowable pipeline backpressure.

For pipeline isolation equipment, an inexpensive plug that does not match the actual pressure condition can create far greater project risk and cost than the initial purchasing difference.

Start Your Pipeline Water-Blocking Project

If you are looking for a high-pressure water-blocking airbag manufacturer in China for municipal sewer maintenance, wastewater networks, pipeline water-tightness testing, temporary drainage isolation or underground culvert work, send us your pipeline and pressure information.

At Hengshui Qingchuan Trading Co., Ltd., we can discuss diameter, pressure requirements, quantity, production, inspection and road transportation based on the actual project.

Our goal is to provide a temporary pipeline-blocking solution that is practical to carry and install, stable when correctly inflated and restrained, easy to remove after safe depressurization, and compact enough to fold when the maintenance job is finished.
